World’s Most Stunning Solar Building – SOLAR ARK

The Solar Ark is an ark-shaped solar photovoltaic power generation facility which offers activities to cultivate a better appreciation of solar power generation, and thereby benefitting both ecology and science.

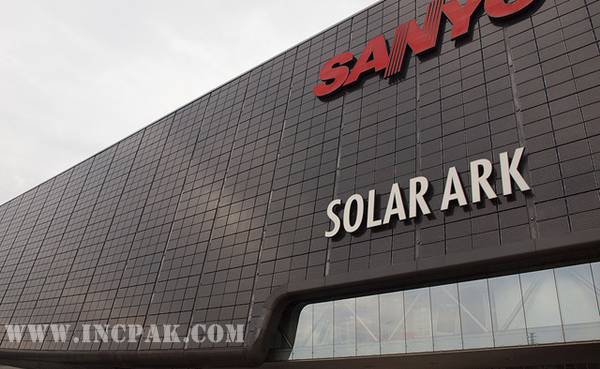

Sanyo has built an ark for the solar century – an impressive 630 kW solar-collecting building that boasts over 5,000 solar panels and kicks off over 500,000 kWh of energy per year. Even more outstanding is the fact that most of the monocrystalline modules used on the Solar Ark were factory rejects headed to the scrap pile. Located next to Sanyo’s semiconductor factory in Gifu, Japan, the Solar Ark stands as one of the best examples of building integrated PV design to date.


SOLAR ARK

the Solar Ark has to be admired as one of the most impressive Building-integrated photovoltaics (BIPV) structures in existence today.

The design of the Solar Ark was inspired by the vision of an ark embarking on a journey toward the 21st Century. Only four columns are used to support the entire structure, thus giving the impression of it floating in the air. Elevation of Solar Ark.

http://www.incpak.com/education/what-is-solar-energy/ What is solar energy?

SOLAR ARK

Structure

Construction

Steel frame with solid trusses.
Construction Area3294.48 m2
Area of South SurfaceApprox. 7500 m2
Overall length315 m
Height31.6 m (center)
37.1 m (both ends)
Width4.3 m (top) – 13.7 m (bottom)
Height Above Ground of the Lower Radiuses20 m
Pillar Span126.6 m × 13.7 m (narrow side x wide side)
Cantilever (Protrusions)94.2 m
Depth13.7 m
WeightApprox. 3,000 tons
Construction companyKajima Corporation
Wind resistance/Earthquake resistanceResistant to maximum wind speed of 34 m/s (peak gust of 60 m/s)
Resistant to level 7 on the Japanese earthquake scale
Clear Coating MaterialFluorocarbon polymer coating (guaranteed rust-proof for 15 years)
CurvatureUpper radius: 2,001 m, Lower radius: 740 m
Construction materialsDesigned to be ultra-thin, giving the Ark the impression of being suspended in the air. Structural steel was used that is 1.5 to 2 times the strength of normal steel.
Made using customized “G-Column” pillars produced by Kubota. These high-quality pillars are homogenous, due to a seamless construction method that utilizes centrifugal force.
Max. diameter: 1,250 mm, Max. thickness: 120 mm, Pillar mass: Approx. 61 tons per pillar
Base and shafts4 shafts of 2000 mm in diameter and 31 m in length are cast in each pillar and support pillars with a total of 16 shafts.
Base and shafts: (Base) Reinforced concrete 7.0 (W) x 7.0 (L) x 5.0 (D) m
4 pillars weighing a total of approx. 5,000 tons
Solar labTotal floor area of this 2-floor, steel-structure building is 542.36 m2

9.3 (W) x 54 (L) m, Pillar span 9.3 x 36 m
The Lab is built in a piloti style at a height of 4.5 m above the ground. The building is structurally separate from the Solar Ark.

Solar Power Generator

  • Type: Single-crystal silicon solar cells
  • Dimensions: 1,320 (W) x 895 (H) x 35 (T) mm
  • Weight:15kg per cell
  • Number of solar battery panels installed:5,046
  • Max. output: 630 kW, Estimated amount of annual power generation: 530,000 kWh
  • 5,046 solar battery panels installed
